Name: Bolts Aluminium Clamp Tension Clamp Suppliers, Factory - Wholesale Bolts Aluminium Clamp Tension Clamp - JINMAI
Brand: Jinmai
SKU: 140647461

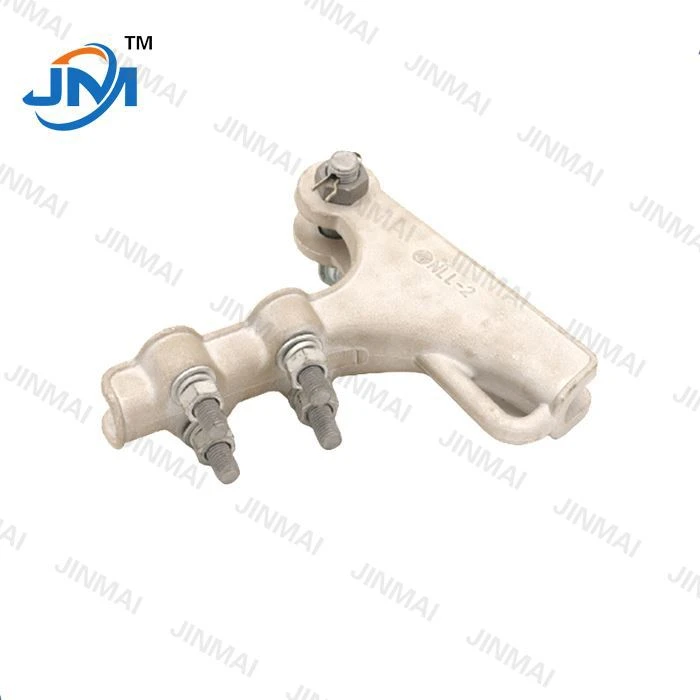

Bolts Aluminum Clamp Tension Clamp is a fastener used in overhead power lines. Its function is to provide the necessary tension and fixation for the conductor or cable.

1. **Type**:
- Wedge Tension Clamp: Uses a wedge mechanism to apply pressure and is suitable for a variety of conductor types.
- Bolted Tension Clamp: Adjusts and maintains tension through bolts and nuts.
- Compression Dead End Clamp: Used at the end of the conductor, not for continuous tension of the conductor.

2. **Material**:
- Aluminum alloy is widely used due to its light weight and corrosion resistance.
- Other components (such as bolts, nuts, washers, etc.) may be made of stainless steel or hot-dip galvanized steel to enhance corrosion resistance.

3**Design**:
- Usually made of aluminum alloy, which is lightweight, corrosion-resistant and has good conductivity.
- Designed to withstand the tension of the conductor while allowing the conductor to move within a certain range to accommodate expansion and contraction caused by temperature changes.

4. **Function**:
- Provide mechanical and electrical support for conductors or cables.
- Ensure that the conductors are properly fixed on the poles or towers and bear the appropriate tension.
- Protect the conductors from environmental factors (such as wind, rain, snow, ice, etc.).

5. **Performance**:
- Must be able to withstand the rated tension of the conductor, usually at least 90% of the rated tension of the conductor.
- Should have good electrical insulation performance to ensure the safety of power transmission.

6. **Installation**:
- During installation, it is necessary to ensure good contact between the tension clamp and the conductor to avoid damage to the conductor.
- Bolts need to be tightened according to the manufacturer's instructions and recommended torque values.

7. **Maintenance**:
- Regularly check the tightening state of the tension clamp to ensure that there is no looseness or corrosion.
- Check whether the conductor is worn or damaged, and whether the tension clamp is properly fixing the conductor.

8. **Application**:
- Mainly used for power transmission lines, including high-voltage transmission lines and distribution lines.
- Can also be used in telecommunication lines and other occasions where conductors need to be fixed.

The correct selection and installation of Bolts Aluminum Clamp Tension Clamp is essential to ensure the stability and reliability of power lines. Handan Jinmai Fasteners can provide you with more professional products.

Company Profile

Handan Jinmai Fastener Manufacturing Co., Ltd., established in 2010, is located in the largest fastener distribution center-Yongnian District, Handan City, Hebei Province, China. Our company is specialized in research, produce and sales of science and technology of electric power accessories, and in the forefront of the industry with digital control and advanced technology, to enable us to meet the diversified market demand.

We have more than 100 excellent employees, as well as strong productivity. The main products are ADSS, OPGW, FTTX optical cable accessories, power fittings, fasteners and other thousands of products; which are mainly used in power line, telecommunication, overhead line and other fields. The products have passed the ISO9001 quality management system certification and are exported to more than 20 countries and regions in Africa, Asia and America. With strict management and high-quality after-sales service, we have won the trust of our customers.

We hope to cooperate with customers all over the world kindly to promote the development of the country's power industry and work together to succeed.
