Name: FTTH Drop Optical Suspension Hook /Span Clamp Suppliers, Factory - Wholesale FTTH Drop Optical Suspension Hook /Span Clamp - JINMAI
Brand: Jinmai
SKU: 284529525

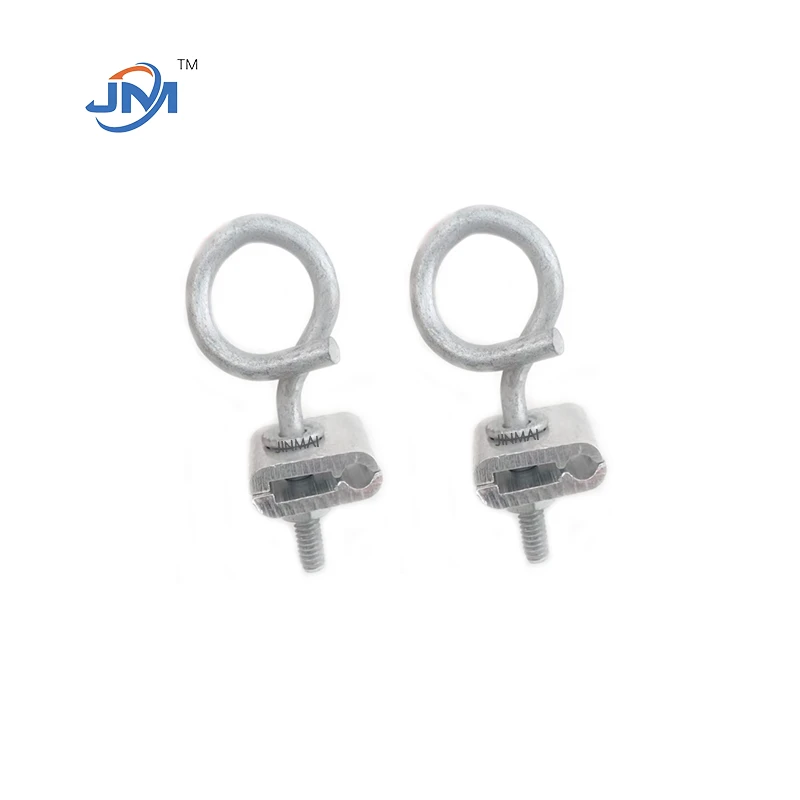

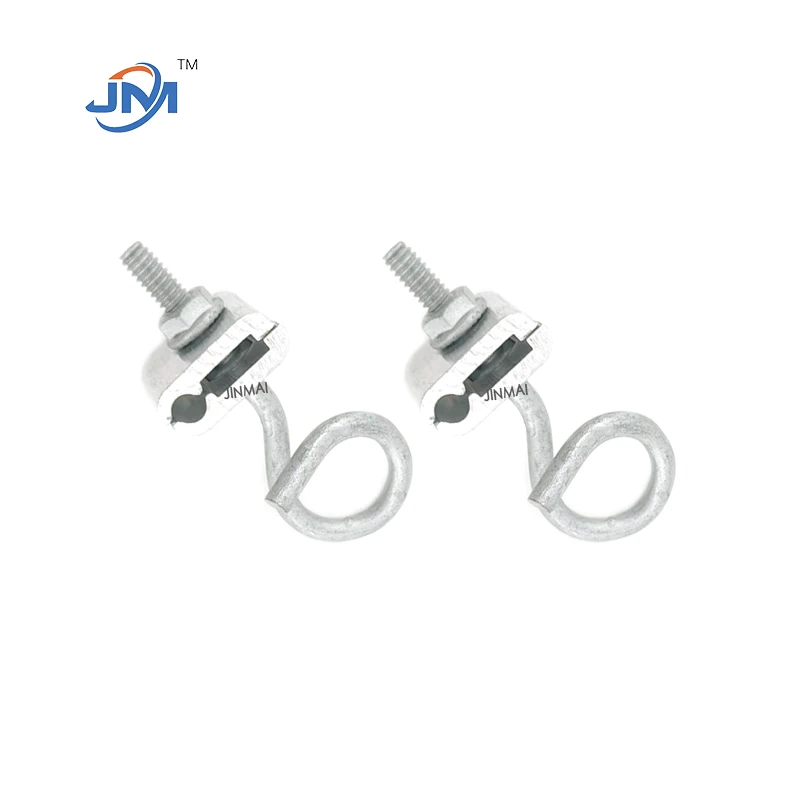

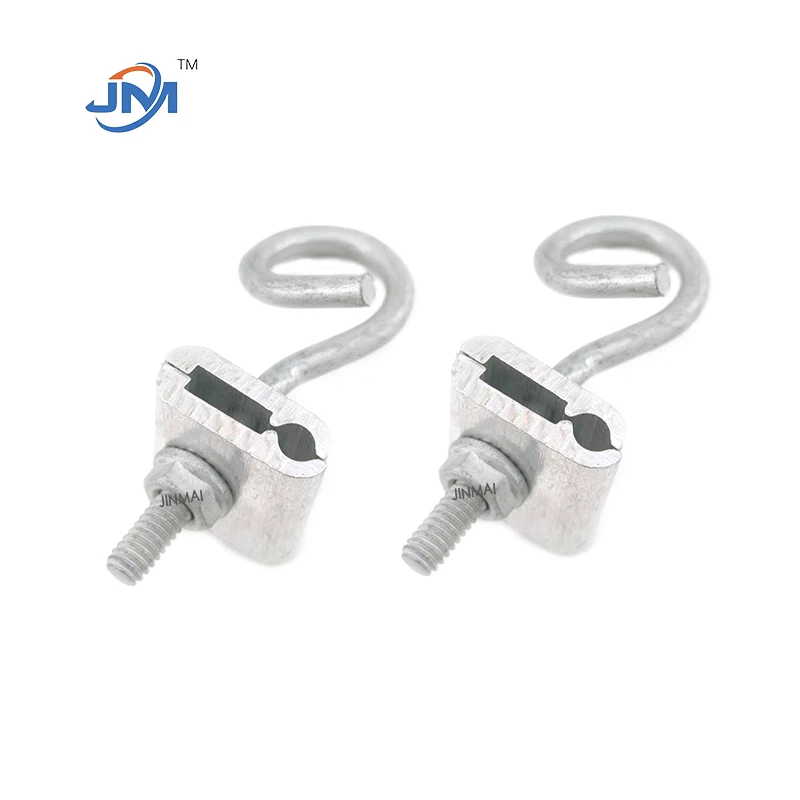

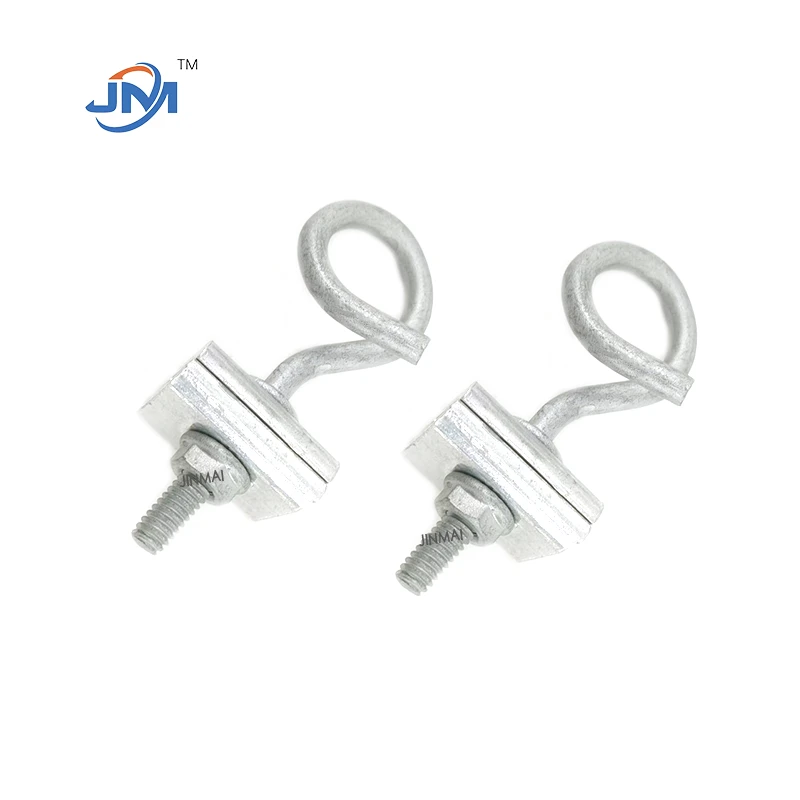

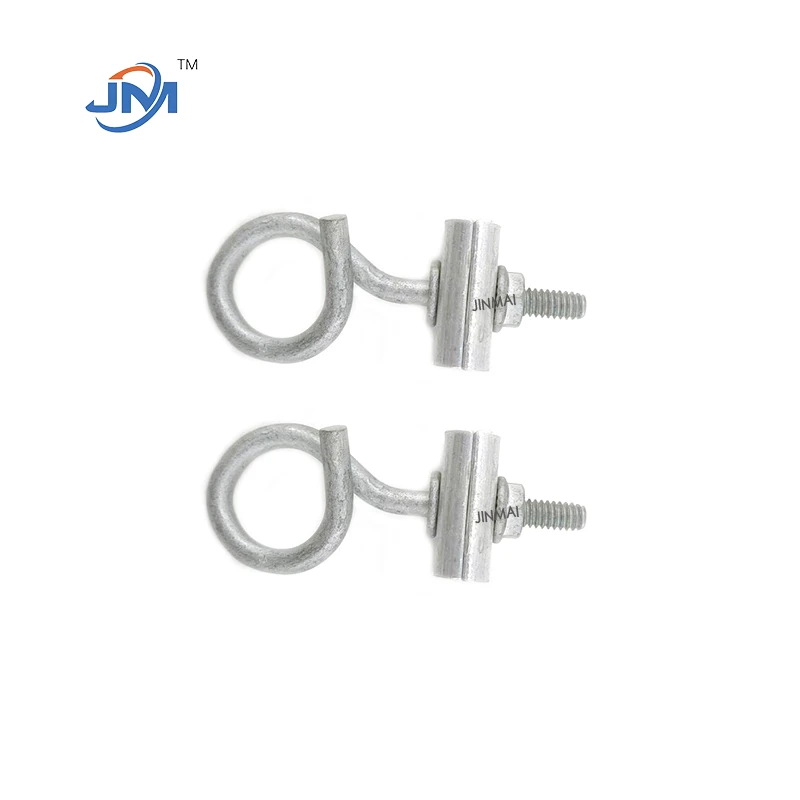

FTTH Fiber Optic Cable Lifting Hook/Crossing Clip

The main body is made of aluminum alloy pressure plate with powder coating or anodizing. The arc groove radius is available in two sizes: 1.5 mm and 3 mm, suitable for flat or round cables. It features a built-in "pigtail" ring at the end for direct attachment to suspension hooks or steel strands, eliminating the need for additional connectors. Designed for low tension with a rated tensile load of 2–5 kN, it is specifically designed for FTTH drop cables and short-span ADSS (30–80 m). The pigtail ring is made of one-piece bent round steel with hot-dip galvanized finish, inner diameter Ø22 mm, suitable for ∅7-18 mm steel strands or various hooks. The screw specification is M8×90 mm, with a hexagonal head 13 mm across the flats. Temperature range: -40 ℃ ~ +85 ℃. Service life: ≥25 years. The FTTH lead-in section is paired with SS-type tension clamps to serve as "intermediate support" or "terminal pull-down"; the ADSS short-span straight bar (50-80 m) replaces traditional galvanized suspension strings, reducing weight by 60%.

Handan Jinmai Fasteners usually packaged in export standard packaging or according to customer needs. Package size and weight may vary depending on product model and quantity.and can provide customized services according to customer needs. also provide pre-sales, sales and after-sales services, including product information provision, technical consultation, contract execution and after-sales problem handling. Our products are mainly sold to South America, North America, Africa, Asia and other regions.

If you need Hot DIP Galvanized Guy Attachment, we welcome you to consult us at any time.

Amy/Sales Manager
Wechat/Whatsapp/Tel:+86 13803104895
Email:amy13803104895@gmail.com
Add: Dongmingyang Village, Linmingguan Town,Yongnian
District, Handan City, Hebei Province

Company Profile

Handan Jinmai Fastener Manufacturing Co., Ltd., established in 2010, is located in the largest fastener distribution center-Yongnian District, Handan City, Hebei Province, China. Our company is specialized in research, produce and sales of science and technology of electric power accessories, and in the forefront of the industry with digital control and advanced technology, to enable us to meet the diversified market demand.

We have more than 100 excellent employees, as well as strong productivity. The main products are ADSS, OPGW, FTTX optical cable accessories, power fittings, fasteners and other thousands of products; which are mainly used in power line, telecommunication, overhead line and other fields. The products have passed the ISO9001 quality management system certification and are exported to more than 20 countries and regions in Africa, Asia and America. With strict management and high-quality after-sales service, we have won the trust of our customers.

We hope to cooperate with customers all over the world kindly to promote the development of the country's power industry and work together to succeed.
