Pin Insulator

Product introduction

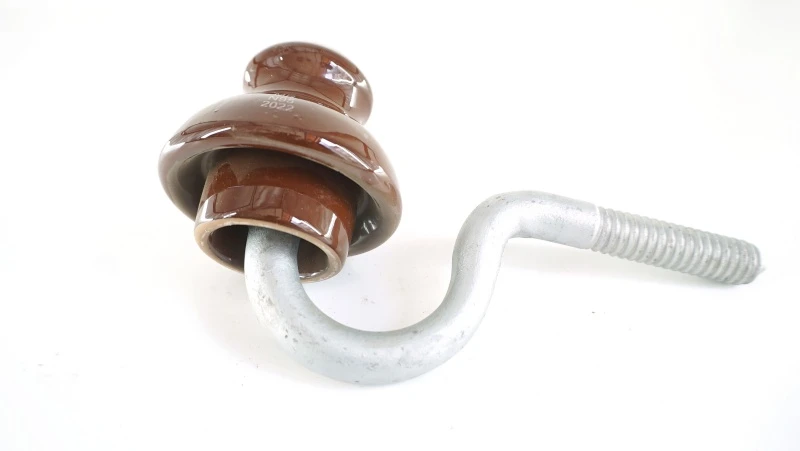

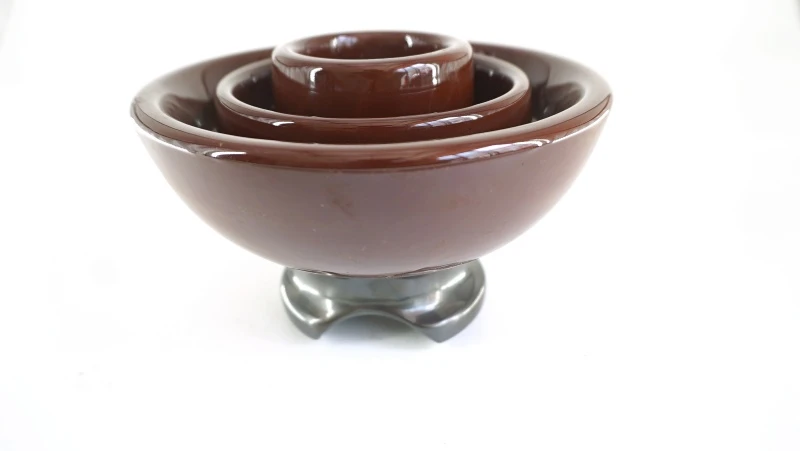

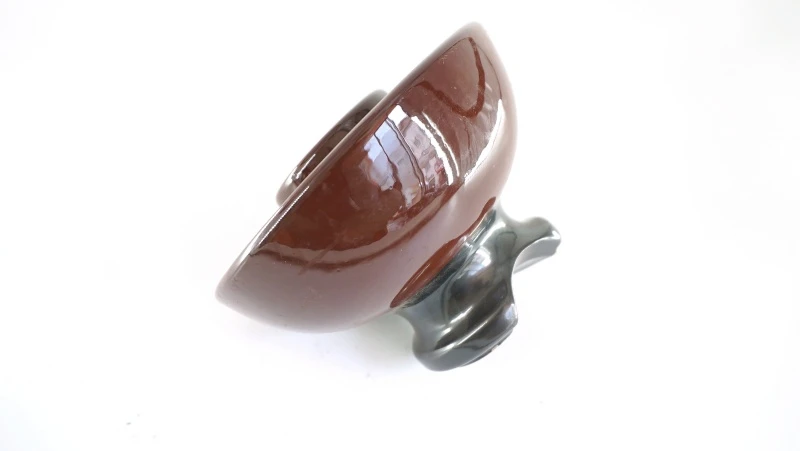

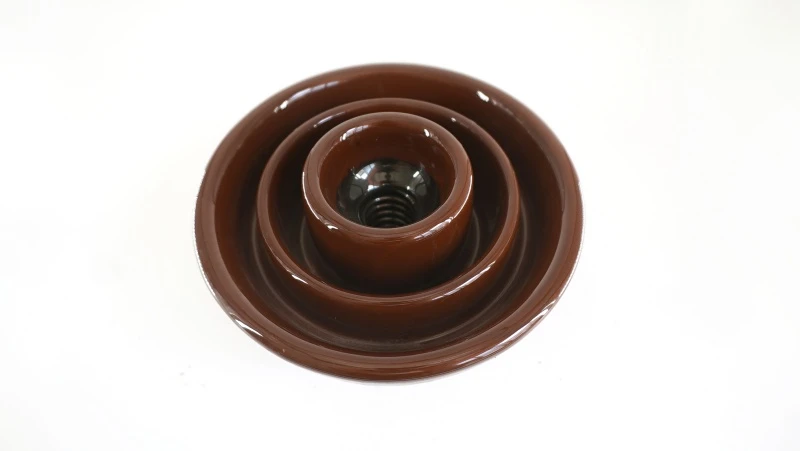

The pin insulator is a type of distribution line insulator, which is mounted to an electrical cross arm of the utility pole with the support of various bolts or pole top pins.
Pin insulator is widely used in power distribution systems with the features of low price, high mechanical strength, simple design, and easy maintenance.
Pin type insulators are assembled on top of the electrical poles or towers. The conductor was fixed to the grooves on the upper end of the insulators, with the help of the top tie.

Pin type insulators can be made of ceramic, porcelain, polymer, glass, or silicon rubber.
For lower voltages one-piece type of insulators are enough, For the application of higher voltage, stronger pin type insulators such as two pieces or three pieces types are needed.
Due to its design, It is generally used for the voltage 11kv up to 33kv, pin Insulators beyond a voltage of 33 kV will be bulky and expensive.

Hot DIP Galvanized Guy Attachment is a power line hardware accessory for utility poles, steel towers or wooden poles. This attachment is designed to securely fix guy wires to provide additional support and stability.
