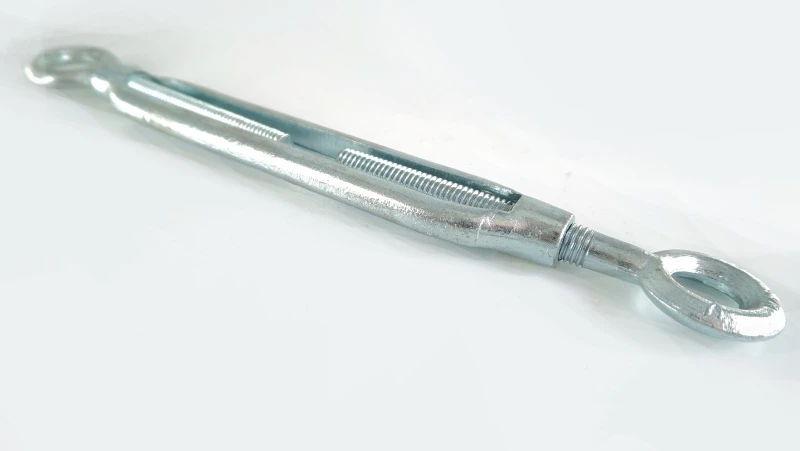

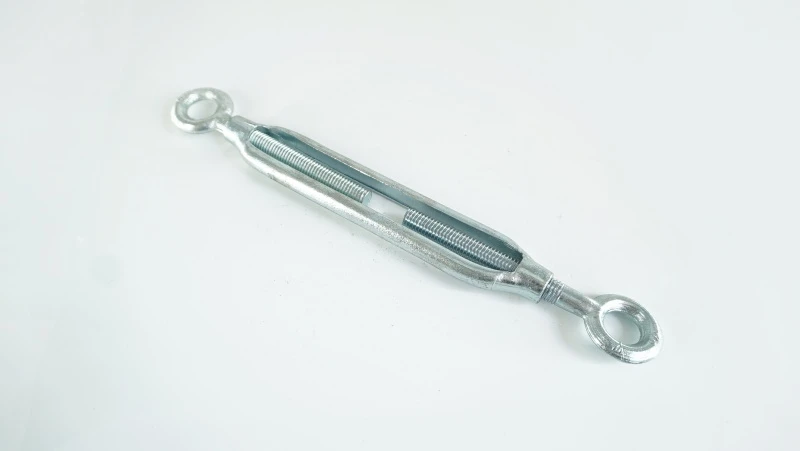

Frame Turnbuckle Eye And Eye Type

The main metal frame that connects the two threaded end fittings is called the turnbuckle body. The end fittings can be extended and retracted and tension adjusted by rotating the body. There are two types of turnbuckle bodies: open and closed. Open turnbuckles have clear threads on the frame and are considered the more traditional type. Closed turnbuckles, or tubular bodies, have threads enclosed in a closed frame, making them slimmer and fit into tighter spaces.

Also known as a lock bolt, it is a small fastener that can be tightened onto the end fittings of a turnbuckle. Once tightened, it can be tightened onto the turnbuckle body to provide additional security and prevent the unit from loosening or falling out. This is important in applications where vibration or movement may cause the turnbuckle to loosen over time.

The end fittings of a turnbuckle are the connection points that are screwed into each end of the turnbuckle body. One end fitting has right-hand threads and the other has left-hand threads. The unique thread design makes it easy to adjust the tension by moving the end fitting after installation.

Hook-end fittings are easy to connect and disconnect quickly and are a convenient option for temporarily creating connections. However, it must be noted that these tension fittings may accidentally release in the event of a Manhattan, as they are not designed for such situations.
