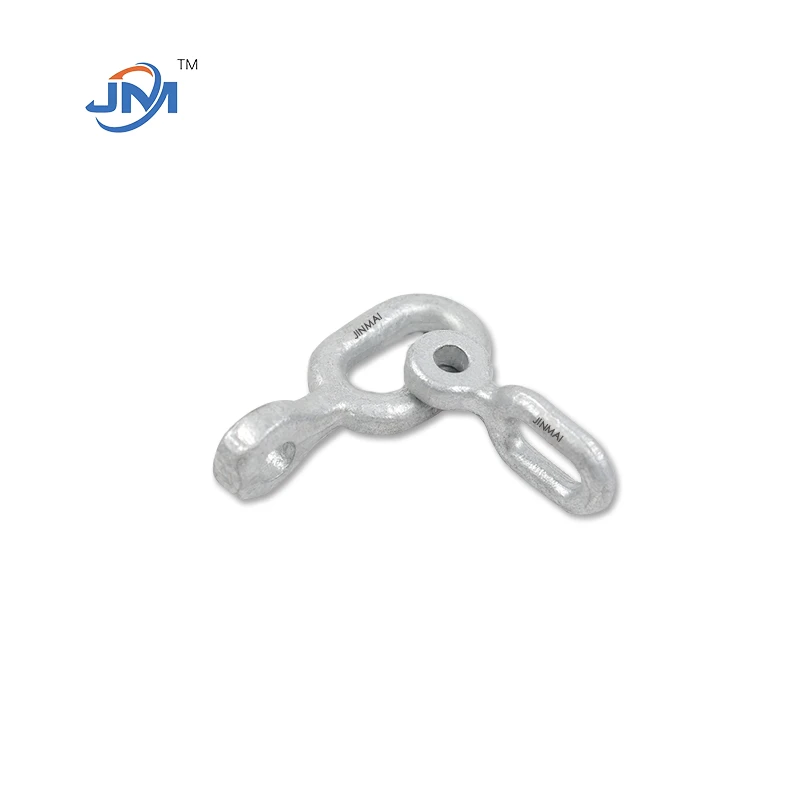

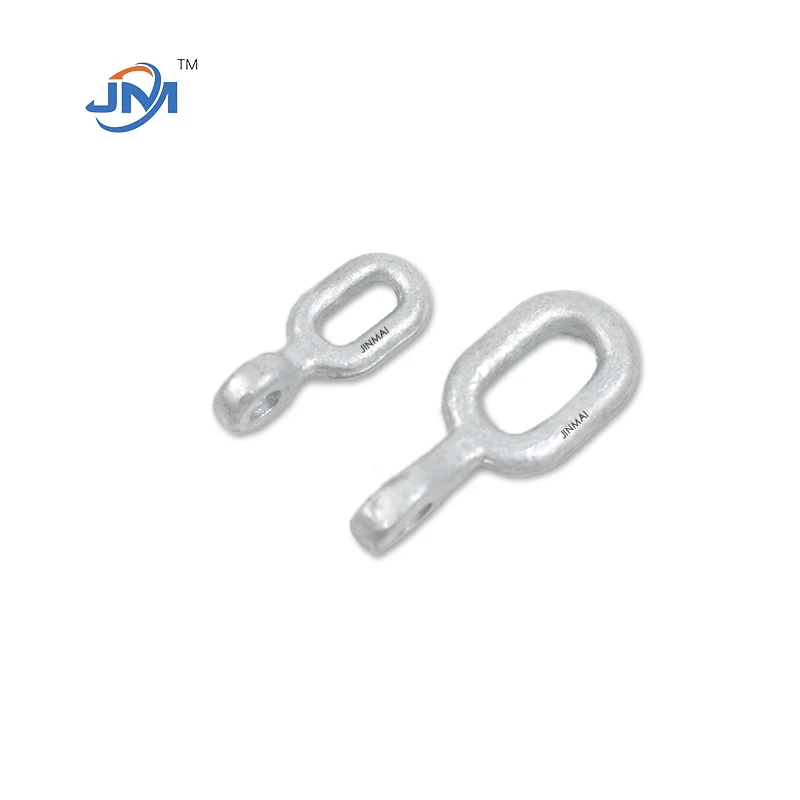

ZH Right Angle Hanging Ring Power Fittings

ZH right angle hanging ring is a connection hardware in power accessories. Its name is similar to ZH right angle hanging plate, but its shape is similar to ball head hanging ring. ZH right angle hanging ring has a protective function. It is a hanging ring with a protective layer. It is used to form a hanging string with a hanging insulator and a hanging clip. It is used to hang wires or straight lines on the tower to avoid direct collision between metal balls and insulators.

**Product Features**:
ZH right angle hanging ring is forged from round steel. The surface is a commonly used hot-dip galvanizing anti-corrosion treatment, which can improve the corrosion resistance and service life of the hanging ring. It is used to connect ring accessories to expand the connection size or change the connection direction. It can also be used to solve the construction problem of over-traction when isolating the tight line.

**Technical Parameters**:
- ZH-7: size 16mm x 24mm, breaking load ≥70kN, about 0.85kg.
- ZH-10: size 16mm x 24mm, breaking load ≥100kN, about 1.12kg.
- ZH-12: size is 6mm x 24mm, breaking load ≥120kN, about 1.20kg.
- ZH-16: size is 18mm x 26mm, breaking load ≥160kN, about 1.80kg.

ZH right angle hanging ring is mainly used to connect and fix power equipment in power system, especially in overhead power lines and substations, used in conjunction with insulators and other power fittings to ensure the safe and stable operation of power system.
