Name: Hot Dip Galvanized Thimble Clevis For Dead End Suppliers, Factory - Wholesale Hot Dip Galvanized Thimble Clevis For Dead End - JINMAI
Brand: Jinmai
SKU: 259934824

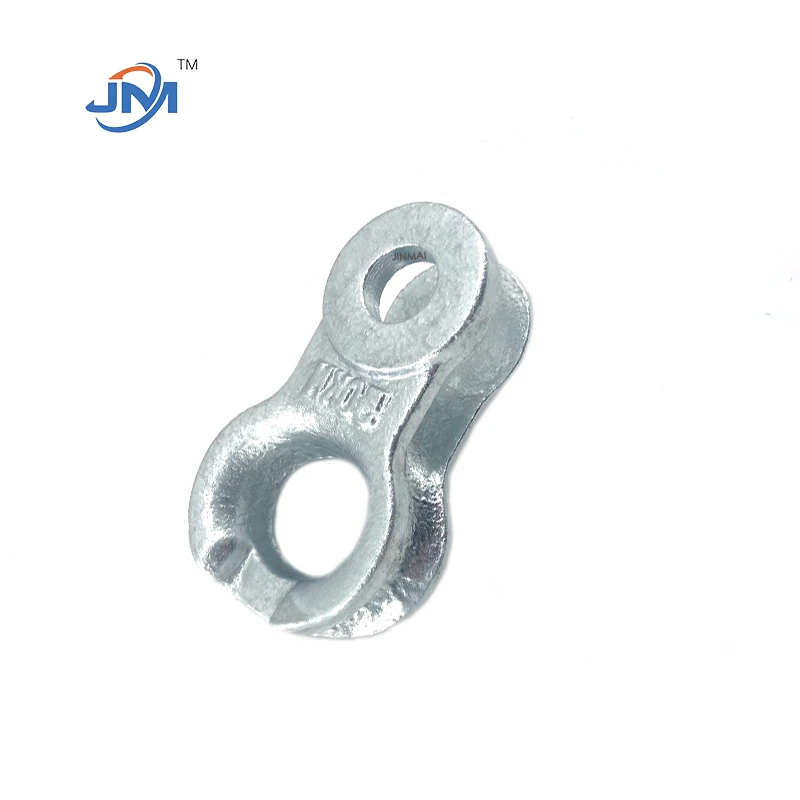

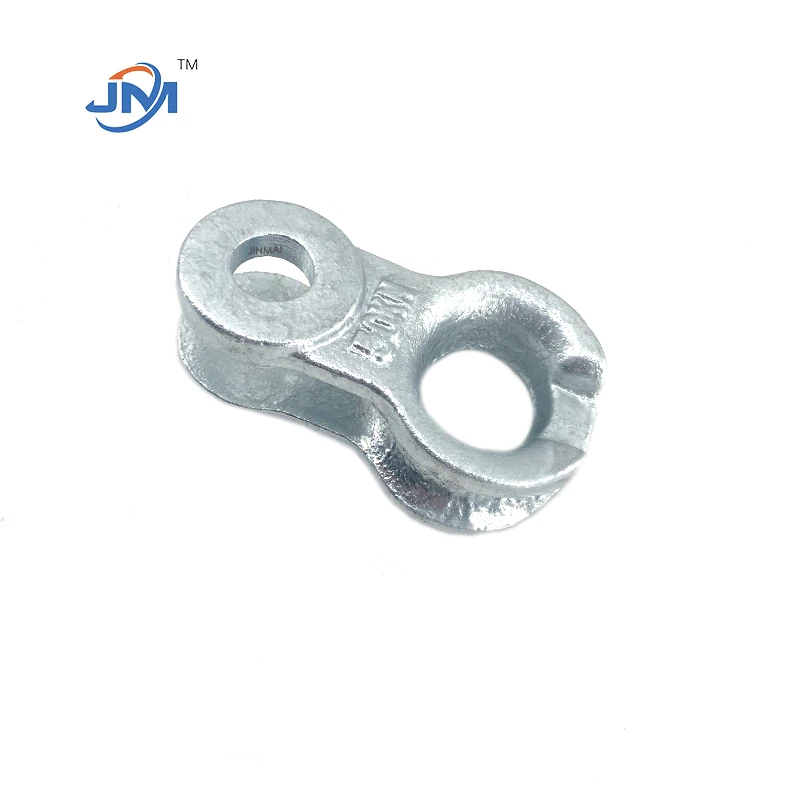

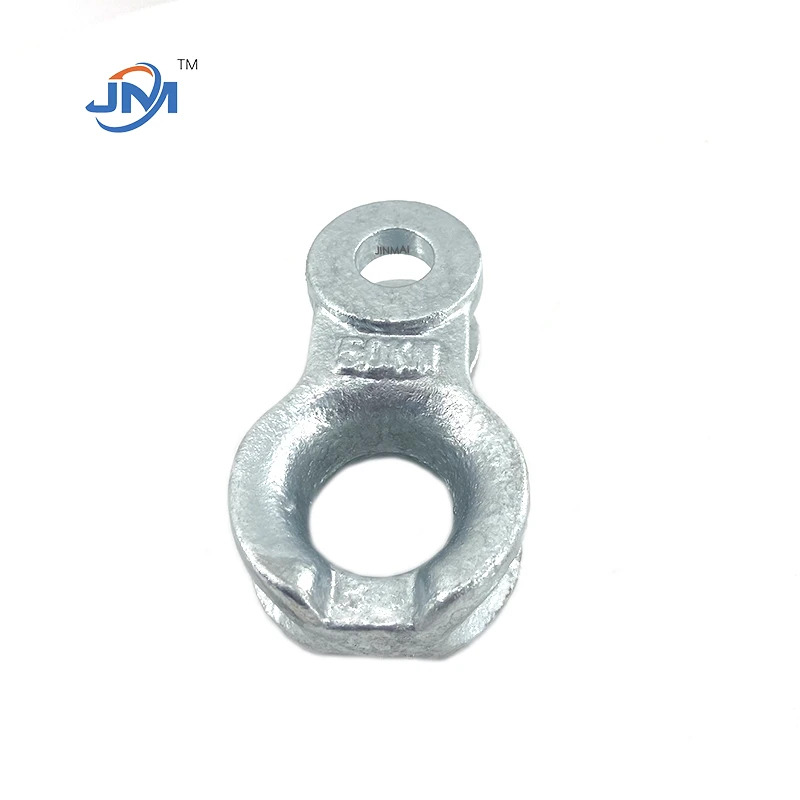

Hot Dip Galvanized thimble clevis for dead end is a connector for power line terminals, mainly used to fix terminal insulators or conductors to poles or other supporting structures.

Material:
Usually made of high-strength cast iron or carbon steel. A variety of tensile strength levels are available, such as 70kN, 100kN and 120kN.

Features:
Material and anti-corrosion performance adopts hot-dip galvanizing process, with a smooth surface and no defects such as missing plating, zinc particles, bubbles or cracks. The galvanized layer has good adhesion and corrosion resistance and is suitable for a variety of harsh environments.

Design:
The internal design is smooth to reduce wear on the soft wire. Provides sufficient flexibility for easy installation and adjustment. Suitable for the connection of terminal insulators or preformed grip devices.

and dimensions:

Code	Diameter	Tension force(KN)
HETC-07	M16	70
HETC-10	M18	100
HETC-12	M20	120

Maintenance:
Check the integrity of the galvanized layer regularly to ensure that there is no damage or corrosion. Check whether the bolts and cotter pins are tight to prevent loosening. If the galvanized layer is found to be damaged or corroded, it should be repaired or replaced in time. When replacing the insulator, there is no need to remove the terminal device.

Cleaning:
Clean the surface dust and dirt regularly to avoid accelerated corrosion. In harsh environments, it is recommended to increase the inspection frequency.

Precautions:
Ensure that the bolts and cotter pins are properly fixed during installation to avoid accidents caused by looseness. Check whether the wire trough diameter is suitable to prevent stress concentration.

Hot Dip Galvanized thimble clevis for dead end is an important connector in power lines and communication lines, with good corrosion resistance and mechanical properties. Proper installation and maintenance can significantly extend its service life.
