Name: Hot Dip Galvanized Three Bolt Wire Clamp Suppliers, Factory - Wholesale Hot Dip Galvanized Three Bolt Wire Clamp - JINMAI
Brand: Jinmai
SKU: 260566448

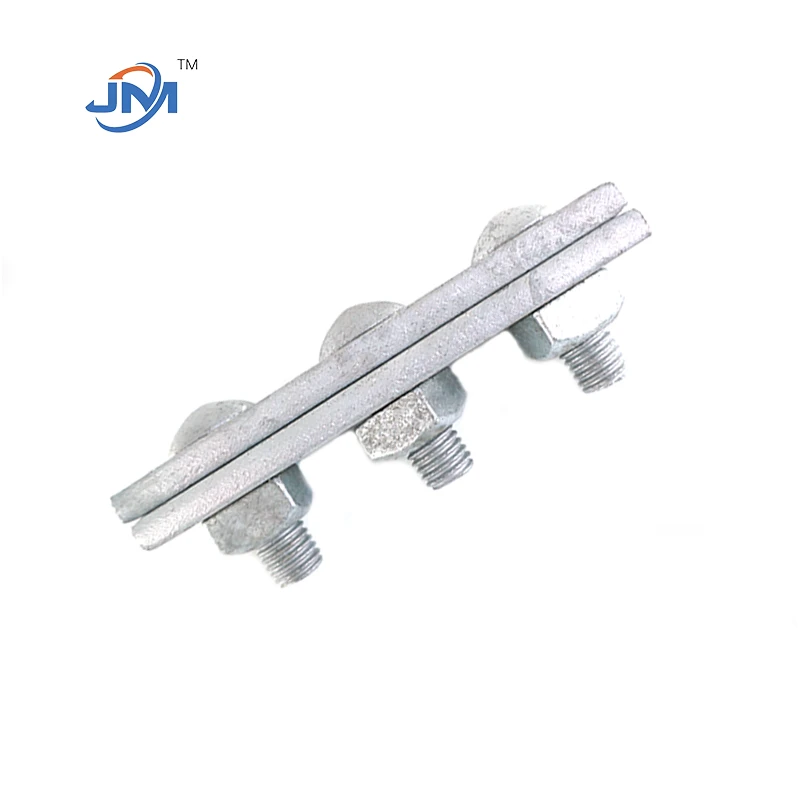

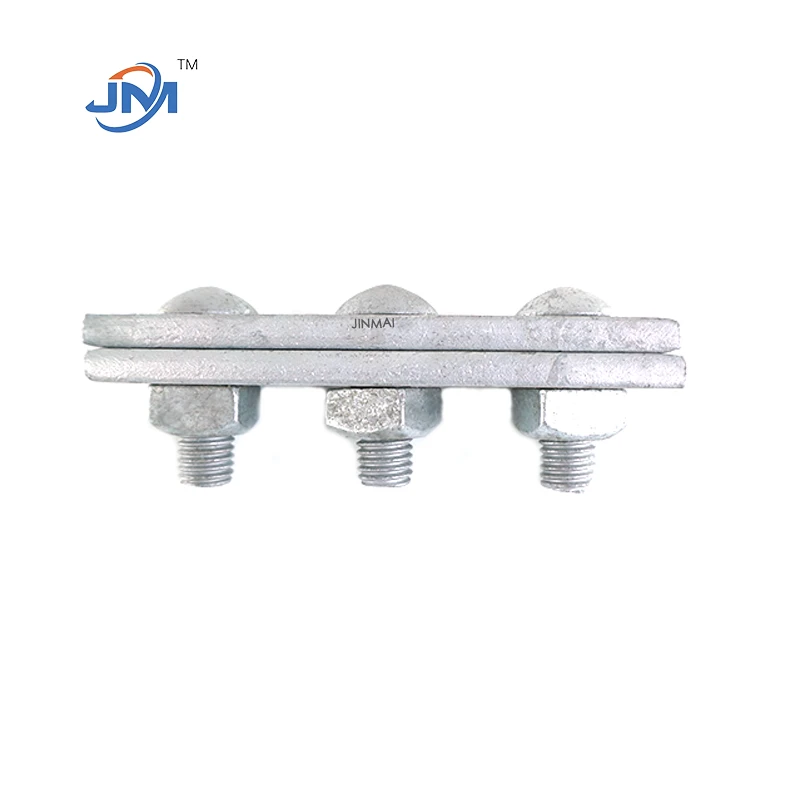

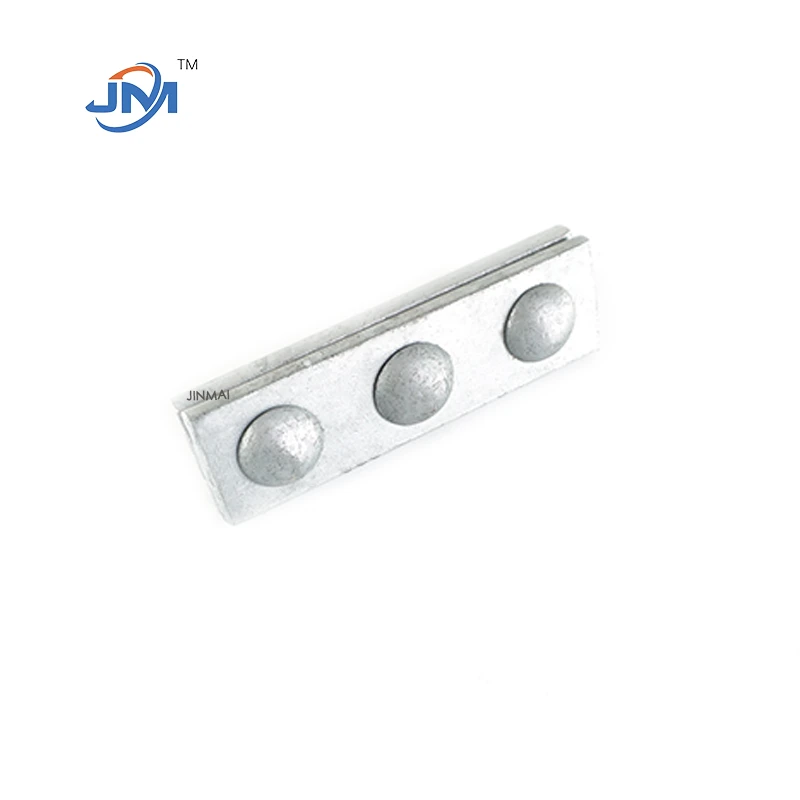

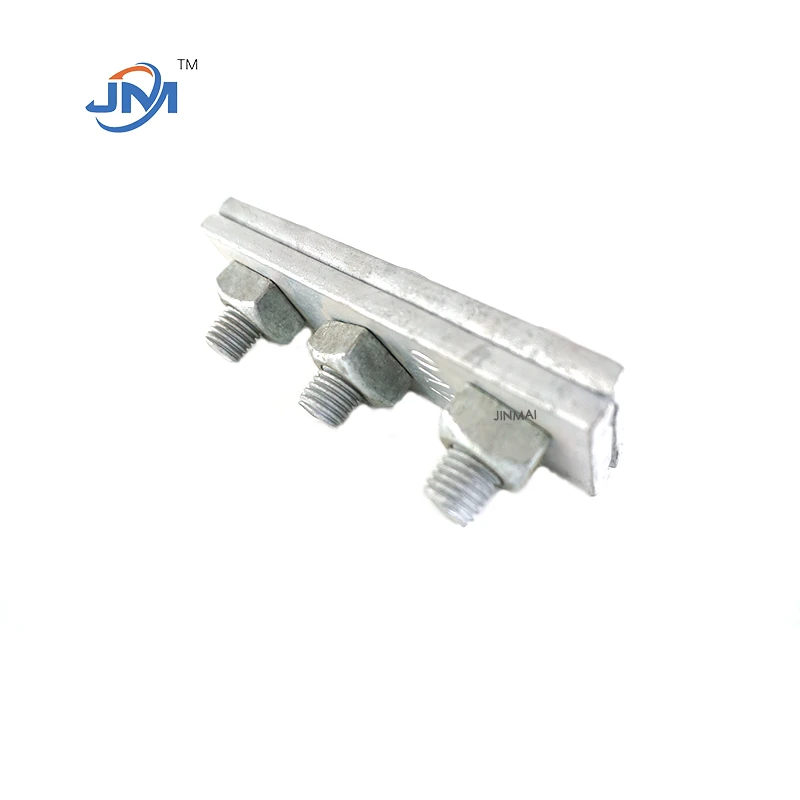

Hot dip galvanized three bolt wire clamp

is a device used to fix wires, cables or similar linear objects. It clamps the wires with three bolts to ensure its stability and safety.

Specifications	Applicable cable diameter (mm)	Wire clamp length (mm	Wire clamp width (mm)	Bolt diameter (mm)	Bolt length (mm)
HZ-01	6 - 16	120	60	M10	50
HZ-02	16 - 35	200	100	M12	70
HZ-03	35 - 70	300	150	M14	100

1. Materials and processes

Hot dip galvanizing: This process involves dipping steel into molten zinc liquid to form a zinc coating to prevent the steel from rusting. The zinc coating can significantly improve the corrosion resistance of the wire clamp, making it suitable for a variety of harsh environments, including humid, chemically corrosive environments.
Material: The body of the wire clamp is made of high-strength steel to ensure that it has sufficient mechanical strength to withstand the tension of the wire.

2. Design features

The three bolts are evenly distributed, providing a more stable clamping force, which can evenly disperse the tension of the wire and reduce local stress concentration, thereby extending the service life of the wire and the wire clamp. The bolts can be adjusted according to the diameter of the wire to accommodate wires of different specifications, increasing the versatility and flexibility of the wire clamp.

3. Advantages

Anti-corrosion performance: The hot dip galvanized layer can effectively prevent the steel from rusting and extend the service life of the wire clamp.
Mechanical strength: High-strength steel and three-bolt design provide sufficient clamping force and stability.
Strong adaptability: Suitable for a variety of environmental conditions, including humid and corrosive environments.

4. Application scenarios

Power industry: Used to fix wires in high-voltage transmission lines and distribution lines to ensure that the wires remain stable under severe weather conditions.
Communication industry: Used to fix communication cables to prevent cables from being damaged by external forces.
Construction industry: Used for temporary or permanent fixing of wires, pipes, etc., especially in situations where high strength and corrosion resistance are required.
