1. Definition

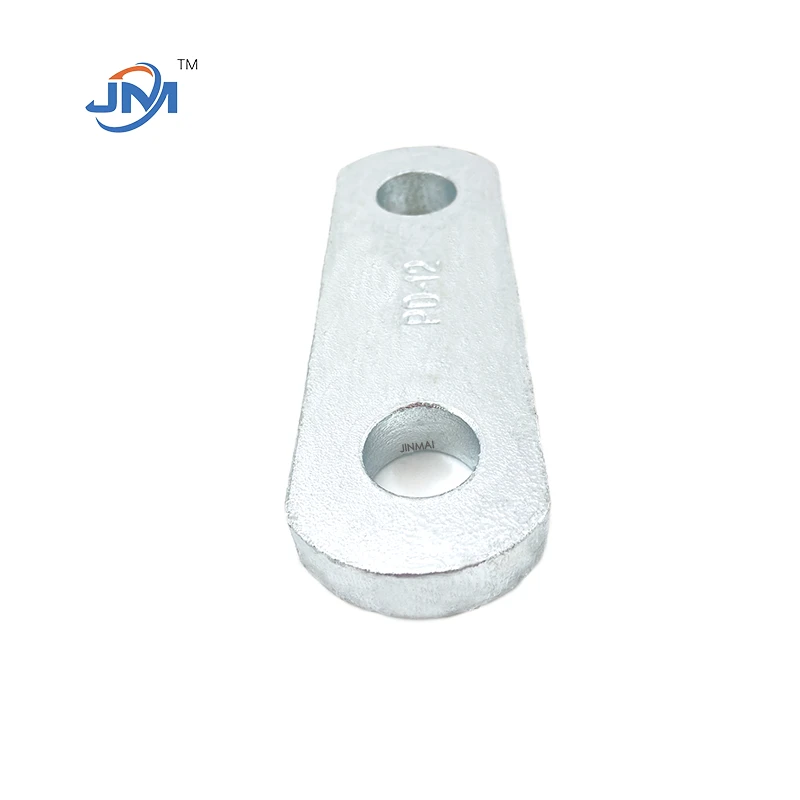

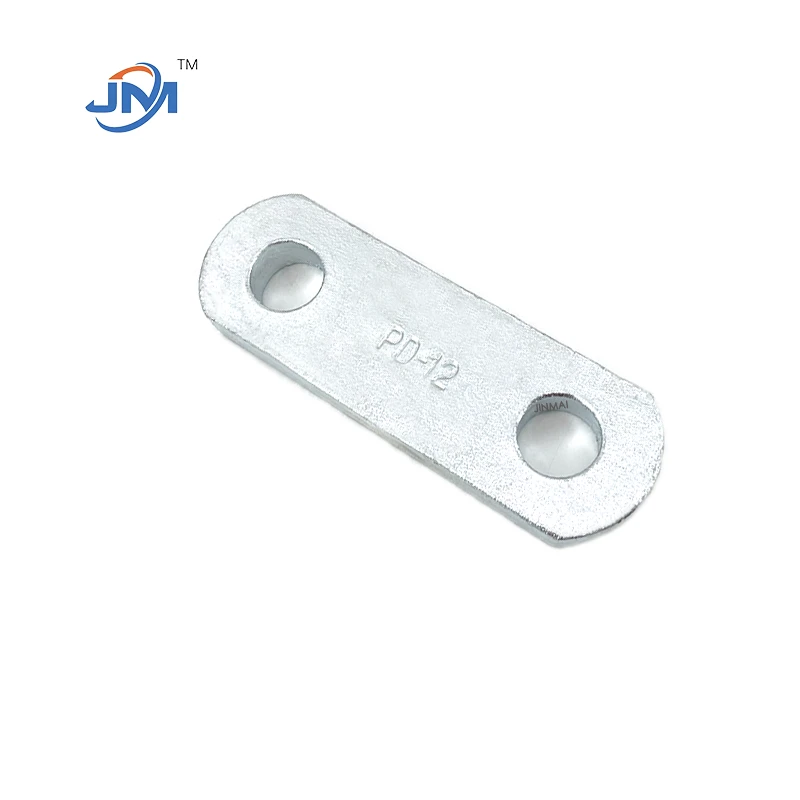

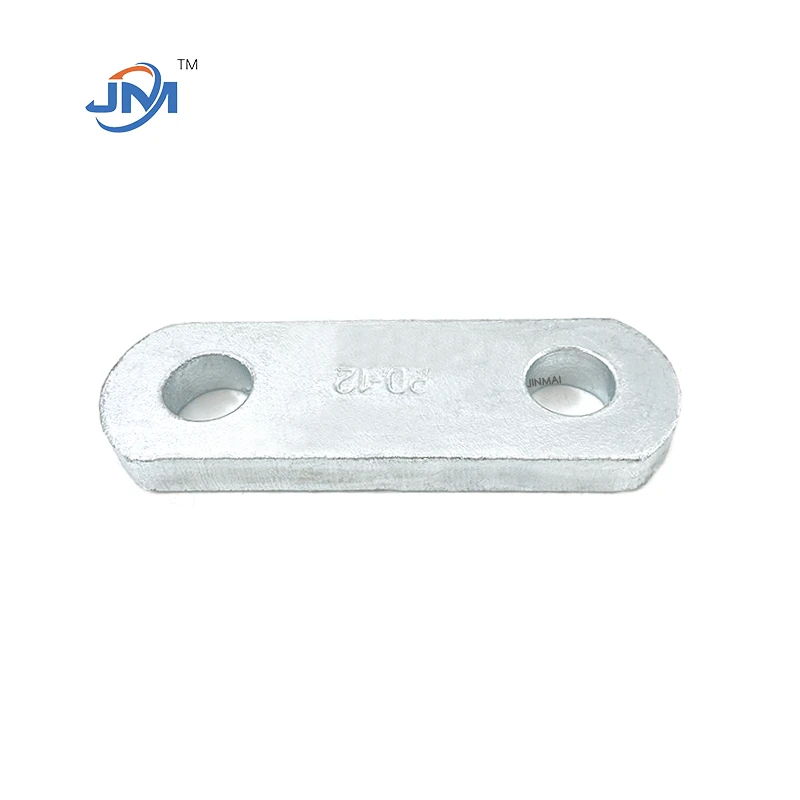

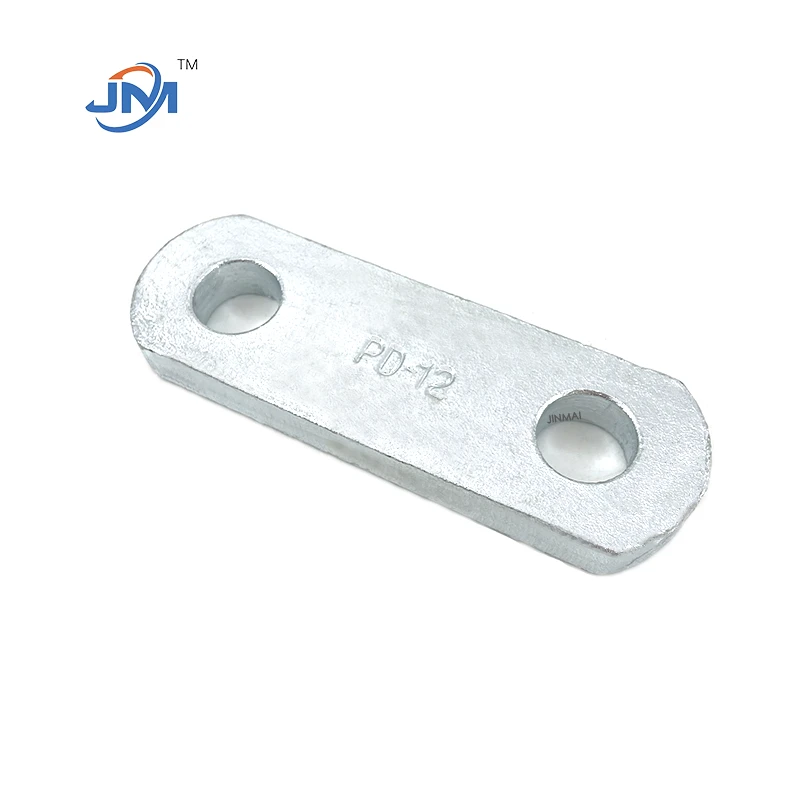

PD hanging plate is a kind of connecting fittings used in power lines and belongs to a kind of parallel hanging plate. It realizes the support and fixing function of power lines by connecting insulator strings or other fittings. The name of PD hanging plate comes from its structural characteristics and uses, where "PD" is its model identification.

2. Structural characteristics
Shape: Usually a rectangular or square metal plate with a hole in the middle for connecting bolts or pins.
Material: Generally made of high-strength steel, the surface is hot-dip galvanized to enhance corrosion resistance and durability.
Connection method: Connected to insulators or other fittings by bolts, pins or closed pins.

3. Model

Model	Main Dimensions (mm)	Destruction Load (kN)	Reference Weight (kg)
PD-7	18×70×16	70	0.57
PD-10	20×80×16	100	0.86
PD-12	24×100×16	120	1.05
PD-16	26×100×18	160	1.28

4. Application
Extend the length of the insulator string: By connecting multiple hanging plates, the length of the insulator string is increased to meet different installation requirements.
Change the connection direction: Through the connection of the hanging plate, the insulator string can be turned or adjusted.
Connect the insulator to the pole tower: Fix the insulator string on the pole tower to play a supporting and connecting role.

5. Summary
PD hanging plate is an indispensable connection hardware in the power system, which has the characteristics of high strength, corrosion resistance and flexible installation. Correct selection and use of PD hanging plate can effectively improve the safety and reliability of the power system.
