Name: WS Type Socket Clevis Suppliers, Factory - Wholesale WS Type Socket Clevis - JINMAI
Brand: Jinmai
SKU: 262234621

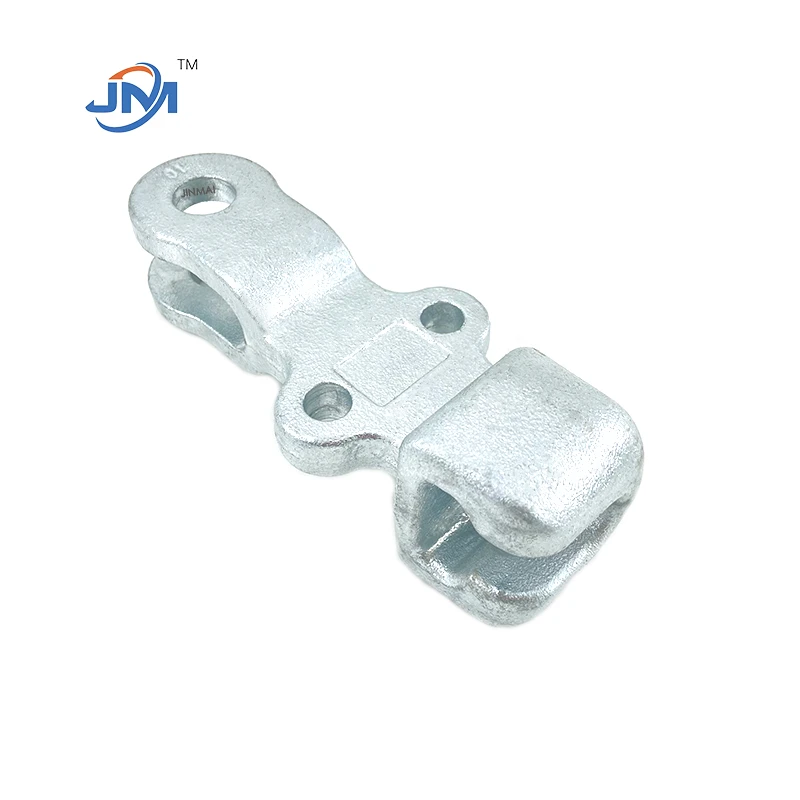

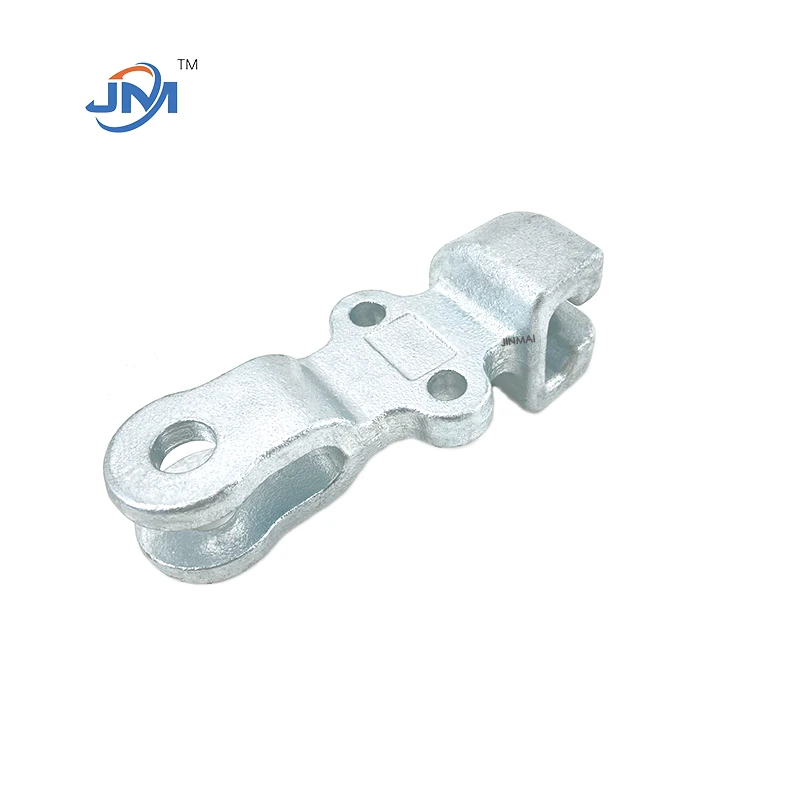

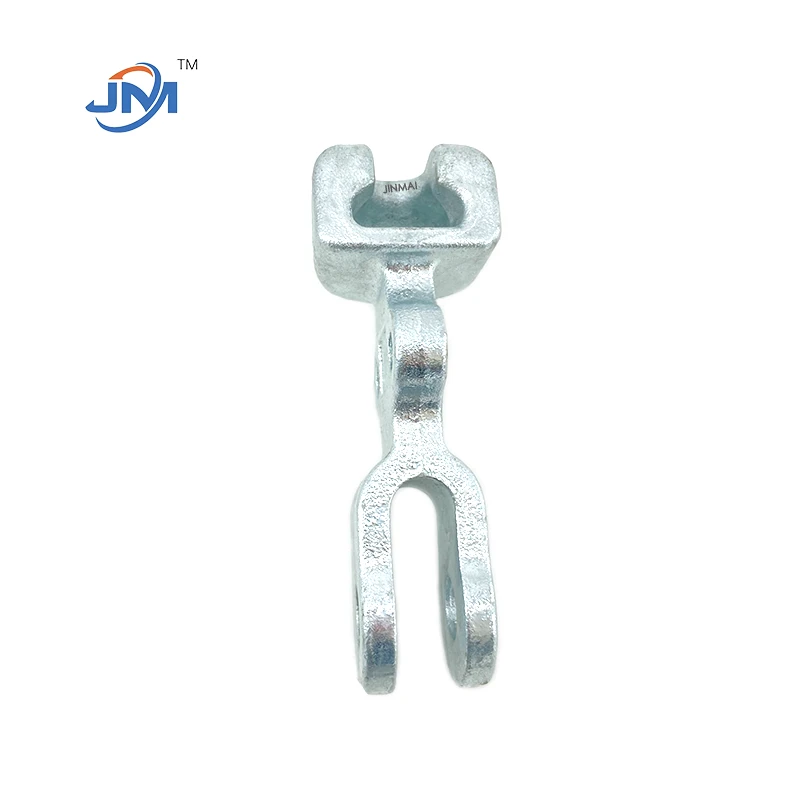

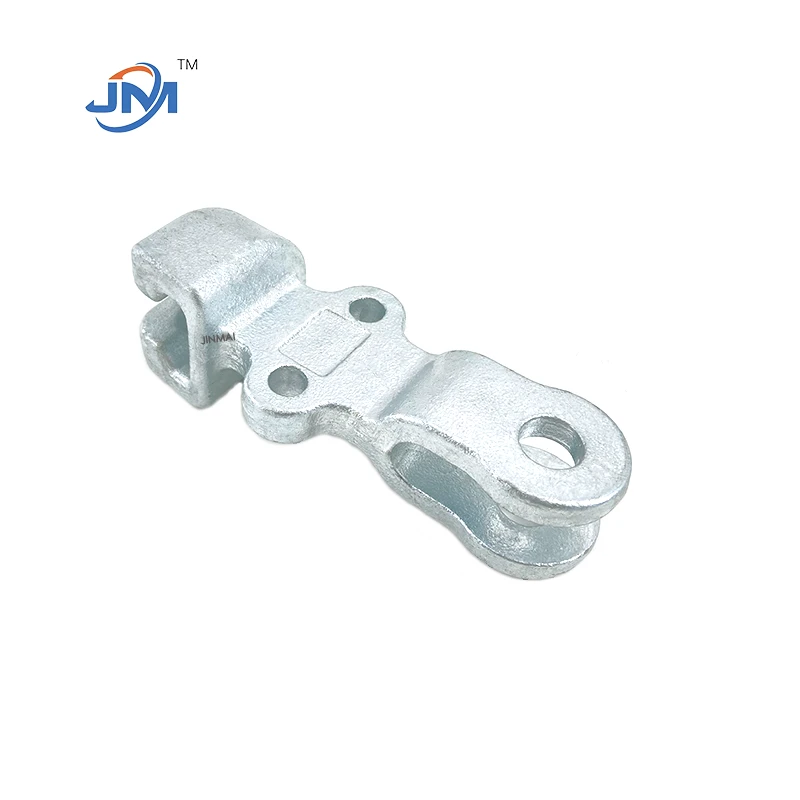

WS type socket clevis is a hardware component used to connect insulators and tension clamps. It usually consists of a U-shaped clamp with a hole and a ball or bowl-shaped socket. This design enables it to be used with ball head insulators or other connectors.

Features:

Parameter	Description
Material	High-strength steel
Surface Treatment	Hot-dip galvanizing
Socket Type	Spherical or bowl-shaped
Clevis Type	U-shaped slot with bolt holes
Load Capacity	Breaking load ranges from 70 kN to 320 kN
Size	According to load capacity and application requirements

Model:

Model	Rated breaking load (KN)	Weight (kg)
WS-7	70	0.97
WS-10	100	1.7
WS-12	120	3.81
WS-16	160	2.6

Function:
The main function is to firmly connect the insulator to the tension clamp or other supporting structure.
Provide electrical connections for electrical connections on power lines to ensure the stability of current transmission.
According to different application scenarios, it can support a variety of connection methods such as ball, U-clip, tongue and groove. Because its surface is hot-dip galvanized, it also has good corrosion resistance and is suitable for use in harsh environments.

Customization:
WS-type Socket Clevis can be customized according to the specific needs of customers, including size, load capacity and material selection.

Maintenance:
Regularly check whether the connection is loose and whether the surface is corroded or damaged. Ensure that the hot-dip galvanized layer is intact to prevent rust. If there is damage or wear, the parts need to be replaced in time.
